StarFish™ Multi-Experiment Work Station - The space saver

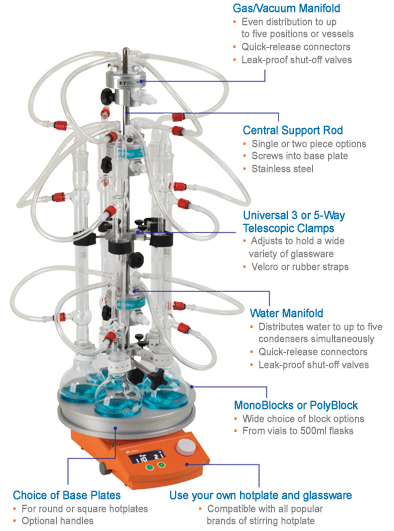

Improve the productivity of your chemistryStarFish_Schema_Radleys_Interchim_0416

What are the Benefits?

  • Space saving - uses less space than multiple heating and stirring set-ups.
  • Increases productivity with multiple positions allowing you to heat, stir and reflux experiments in parallel.
  • Cost effective - use your existing stirring hotplate and glassware. Eliminate the cost of multiple set-ups.
  • Safer, cleaner working.Eliminate oil baths, reduce spills, mess and accidents.
  • Flexible - use as many positions as you want.
  • Easy to use and quick to assemble.

    StarFish_MonoBlock_Clamp_Radleys_Interchim_0416











StarFish - for popular heating and stirring applications

Synthesis, distillation, extraction

StarFish Applications
Whether you want to heat and stir, or perform more complex experiments, StarFish really can make your life easier and improve productivity.
StarFish has proven popular in the following laboratories:

  • Teaching and university.
  • Chemistry and biochemistry.
  • Environmental analysis.
  • Food testing.

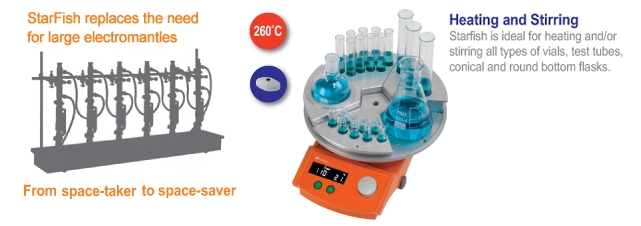

starfish_chemistry_tools_radleys_interchim_695

StarFish_Synthesis_Radleys_Interchim_0416 StarFish_Distillation_Radleys_Interchim_0416 StarFish_Extraction_Radleys_Interchim_0416
Synthesis Distillation Extraction
Suitable for standard round
bottom flasks from 5ml to 500ml,
as well as 1 inch and 24mm
boiling tubes. Hold condensers
up to 70mm in diameter.

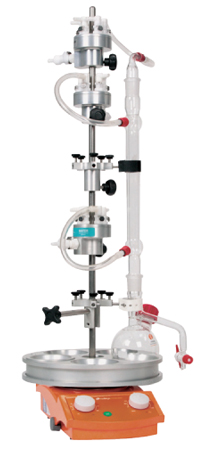

Configure for all common types
of distillation including; binary
and multi-component, vacuum, fractional and azeotropic methods.
Replace large, inflexible extraction apparatus. Using standard round bottom flasks from 5ml to 500ml and glassware assemblies for soxhlet, liquid-liquid, reverse liquid-liquid and reflux extraction methods.

StarFish - modular and versatile

Use your existing hotplate and glassware

StarFish_Modular_Versatile_Radleys_Interchim_0416

StarFish_Base_Plate_Radleys_Interchim_0416Base Plates - for round or square hotplates
StarFish base plates fit securely on all popular brands of stirring hotplate with both round or square top plates and are designed to maximise thermal contact with the heated top plate.

Lifting handles - insulated
Optional insulated handles can be screwed to the base plate, StarFish_Support_Radleys_Interchim_0416
allowing the
safe removal of the base plate from the hotplate whilst still hot.

Support rods - stainless steel
Stainless steel 12mm ø x 650mm long. Rods screw directly into base plate.

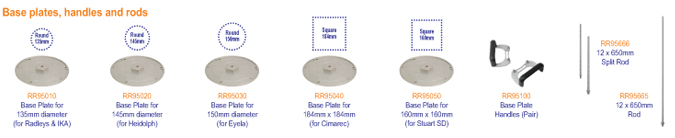

StarFish_Handles_Rots_Radleys_Interchim_0416

StarFish - for vials, test tubes and flasksStarFish_PolyBlock_Radleys_Interchim_0416

Mix’n’match the components you need, when you need them

MonoBlocks and PolyBlocks

  • Chemical resistant anodised aluminium for rapid heating of vials, tubes and flasks up to 260ËšC
  • MonoBlocks are single blocks with multiple wells all of the same size.
  • PolyBlocks are smaller segments that can be mixed to accommodate any combination of vessel (5 per StarFish).
  • All blocks are stackable to maximize lab space, have a 3.5mm hole for a temperature probe and are individually labelled for easy identification.

Reducing inserts for flasksStarFish_Reducing_Inserts_Radleys_Interchim_0416

  • Aluminium reducing inserts for flasks from 5ml to 150ml fit in 250ml wells in PolyBlocks and MonoBlocks.


StarFish - manifolds and clampsStarFish_Clamp_Radleys_Interchim_0416

Manifolds provide quick, convenient and tidy water/gas connections

StarFish_Gas_Water_Manifold_Radleys_Interchim_0416What are the Benefits?

  • Make the connection of water or gas/vacuum to multiple vessels quick and easy
  • Manifolds can be used independently of StarFish
  • Screw-tightening allows location of manifolds in any position on a standard 12mm ø support rod
  • Quick-release gas/fluid connectors
  • Leak-proof shut-off valves close when the couplings are parted

Base Plates - for round or square hotplates
Allows coolant from a single source to be evenly distributed to up to five condensers and then re-combined to one outlet pipe. Two manifolds are used in each set-up.

Gas/vacuum manifold
Allows gas or vacuum from a single source to be evenly distributed to up to five positions or vessels. (Does not control or regulate gas/vacuum flow)

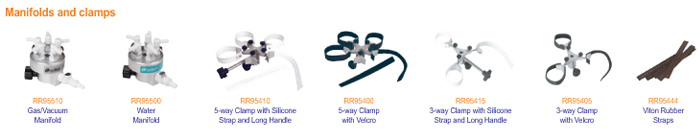

StarFish_Manifolds_Clamps_Radleys_Interchim_0416

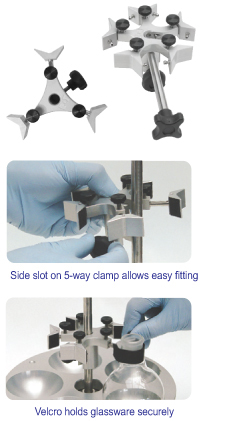

StarFish_Universal_Clamps_Radleys_Interchim_0416Universal Clamps
3 and 5-way Universal Clamps are designed to safely support flasks, condensers and other glassware.
They feature adjustable telescopic arms and flexible straps to hold glassware.

  • Designed to be raised or lowered with glassware in-situ
  • Choice of Velcro or rubber supporting straps
  • Rubber straps grip glassware from 15 to 70mm in diameter - ideal for lifting vessels
  • 5-way clamp features a slot which allows it to be located on to the support rod from the side
  • Velcro straps are designed specifically not to grip glassware tightly, allowing condensers to slide through the strap, whilst still being safely restrained
  • Optional Viton rubber straps offer superior chemical resistance

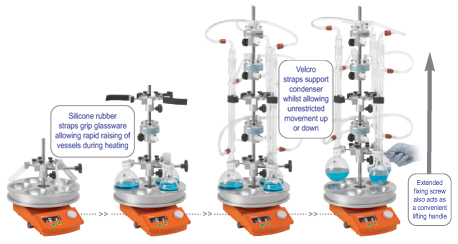

How do the clamps work?
Grip the flask neck with a rubber strap on the lower clamp for lifting, whilst the condenser above slides through the Velcro strap on the upper clamp.Starfish_Clamps_Work_Radleys_Interchim_0416

StarFish - accepts standard glassware
StarFish_Installation_Radleys_Interchim_0416

Versatile design holds glassware of different sizes and shapes

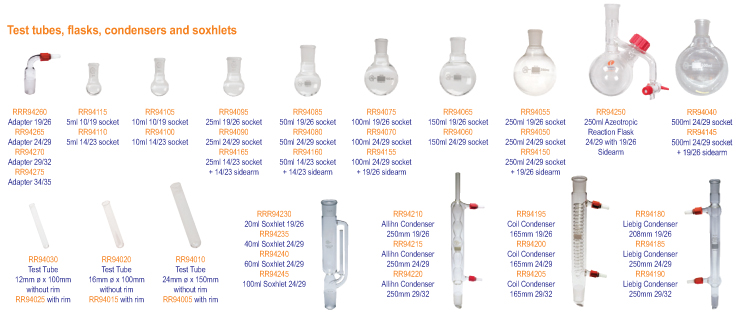

Accessory Glassware

  • StarFish blocks are designed to accept standard laboratory glassware
  • For your convenience we offer a range of standard glassware
  • StarFish will also accommodate glassware from the Radleys’ Carousel 12 Plus, 6 Plus and GreenHouse Plus

 StarFish_Accessory_Glassware_Radleys_Interchim_0416

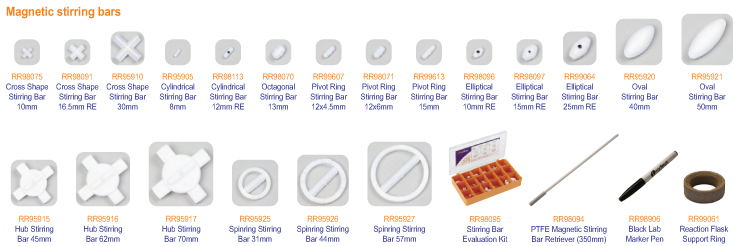

PTFE Magnetic Stirring Bars

  • A massive choice of stirring bars, suitable for the smallest vials through to the largest flask


“StarFish delivered a simple and versatile alternative to five individual heating mantle set-ups, improving the student experience and making better use of laboratory facilities and space.” Alan Hague, University of Bradford

Search : StarFish
   Not
Advanced Search : StarFish
 Sort by : Part number Alphabetical 25 50
13 products
INTERCHIM 1000ML R/B FLASK 24/29 WITH 19/26 SIDEARM
#nogo
P/N : JW7540     Pack : 1 x 1 U.
P/N : JW7540         Item : JW7540         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM 2000ML R/B FLASK 34/35 WITH 19/26 SIDEARM
#nogo
P/N : JW7460     Pack : 1 x 1 U.
P/N : JW7460         Item : JW7460         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM 3000ML R/B FLASK 34/35 WITH 2X19/26 SIDEARMS
#nogo
P/N : JW7480     Pack : 1 x 1 U.
P/N : JW7480         Item : JW7480         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM MONOBLK FOR 16 FLT BTM VESSEL OVER 17MMOD
#nogo
P/N : IQ6160     Pack : 1 x 1 U.
P/N : IQ6160         Item : IQ6160         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM MONOBLK FOR 40 FLT BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6150     Pack : 1 x 1 U.
P/N : IQ6150         Item : IQ6150         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM MONOBLK FOR 40 RND BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6180     Pack : 1 x 1 U.
P/N : IQ6180         Item : IQ6180         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 3 FLT BTM VESSEL OVER 17MMOD
#nogo
P/N : IQ6091     Pack : 1 x 5 U.
P/N : IQ6091         Item : IQ6091         Pack : 1 x 5 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 3 FLT BTM VESSEL OVER 17MMOD
#nogo
P/N : IQ6090     Pack : 1 x 1 U.
P/N : IQ6090         Item : IQ6090         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 3 RND BTM VESSEL OVER 17MMOD
#nogo
P/N : IQ6190     Pack : 1 x 5 U.
P/N : IQ6190         Item : IQ6190         Pack : 1 x 5 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 7 FLT BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6111     Pack : 1 x 5 U.
P/N : IQ6111         Item : IQ6111         Pack : 1 x 5 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 7 FLT BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6110     Pack : 1 x 1 U.
P/N : IQ6110         Item : IQ6110         Pack : 1 x 1 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 7 RND BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6121     Pack : 1 x 5 U.
P/N : IQ6121         Item : IQ6121         Pack : 1 x 5 U.
Cat. Price :



INTERCHIM POLYBLOCK FOR 7 RND BTM VESSEL TO 17MMOD
#nogo
P/N : IQ6120     Pack : 1 x 1 U.
P/N : IQ6120         Item : IQ6120         Pack : 1 x 1 U.
Cat. Price :
