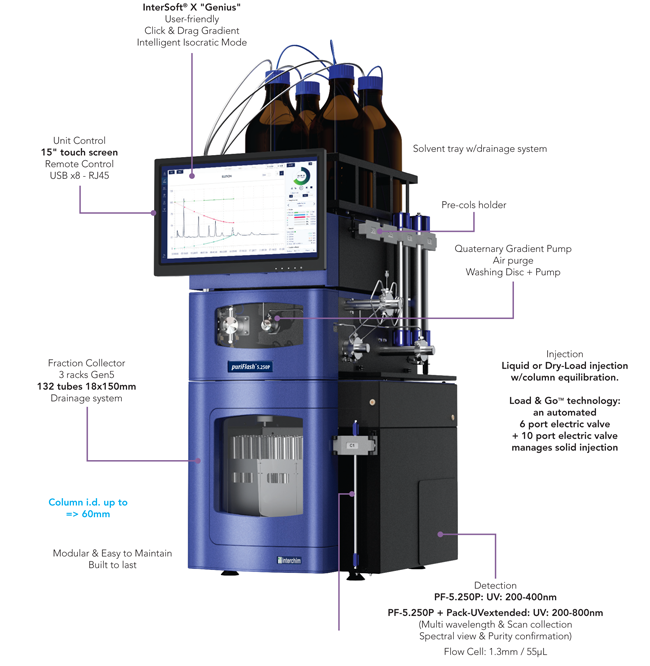

Pump |
|
Injection |
|
Columns Holder |
Flow rate: 125mL/min
Pressure max.: 250bar
Quaternary Gradient
Air purge
Washing discs
Pump washing disc
Solvent tray with drainage system |
|
6 port + 10 port electrical valves w/loop
Injection mode: liquid - Dry-load |
|
Integrated
Pre-column holder |
|
|
|
|
|
Detector |
|
Fraction Collector |
|
System Optimization |
UV: 200 - 400nm
multi wavelength & scan collection
Spectral view & purity confirmation |
|
3 racks Gen5
132 tubes 18x150mm |
|
Tubings: 0.75mm id
Flow cell-optical length: 1.3mm / 55µL |
|
|
|
|
|
Unit control |
|
Software |
|
Safety |
Touch screen 15"
USB x 8
RJ45 |
|
InterSoft® X "Genius" |
|
Leak detection (pump, FC, …)
Solvent tray w/drainage system
Collector w/drainage system
Solvent level monitoring
RFID
Fume Encloser |
