Compact heater
|
 |
- Holds one column with 3/8" or 1/4" diameter by up to 30cm length
- Additional room for guard column
- Compact design with exact temperature control from 20.0°C* to 90.0°C
- Extremely simple to set and use
- Easy access for column and fittings
- Stable to +/- 0.1°C
- Accurate to +/- 0.2°C
|
| |
| Model |
Temperature
range |
Capacity |
External
dimensions (cm) |
Internal
dimensions (cm) |
P/N |
| Compact heater |
20* to 90°C |
1 analytical column |
40 x 5.7 x 7.6cm |
38 x 2.29 x 3.18cm |
A2XK50 |
| *Ambient temperature + 10°C |
ECHOTHERM™ chilling and heating HPLC column oven
|
 |
- Holds one column with 3/8" or 1/4" diameter by up to 30cm length
- Additional room for guard column
- Exact temperature control from 4.0°C* to 100°C
- Peltier driven for heating and chilling
- Stable to +/- 0.1°C
- Accurate to +/- 0.2°C
|
| |
|
| Model |
Temperature range |
Capacity |
External
dimensions (cm) |
Internal
dimensions (cm) |
P/N |
| EcothermTM |
4°C to 100°C |
1 analytical column |
42.5 x 20 x 15.8cm |
38 x 3.8 x 3.8cm |
EO2790 |
| *12 to 16°C below ambient temperature. |
ECHOTHERM™ chilling/heating HPLC column oven
|
 |

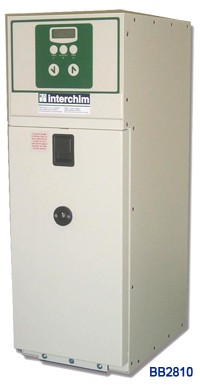

High Capacity Heater
|
- Front opening door for easy, unobstructed mounting of columns,
valve, tubing and fittings
- Large capacity with a small footprint
- Energy efficient Peltier based
- 220V
- Large capacity HPLC column oven
- Exact temperature control from 4.0°C to 70.0°C
- Stability to +/-0.2°C
- Accuracy to+/-0.2°C
- Peltier-based for chilling and heating
- RS232 I/O port for programmable control or
data logging with PC
|
| |
| Model |
Temperature range |
Capacity |
External
dimensions (cm) |
Internal
dimensions (cm) |
P/N |
| EcothermTM |
4* to 70°C |
up to 4 columns of 1" diameter and 30cm |
65 x 22 x 34cm |
39 x 16 x 13cm |
BB2810 |
| *12 to 16°C below ambient temperature. |
|
|
