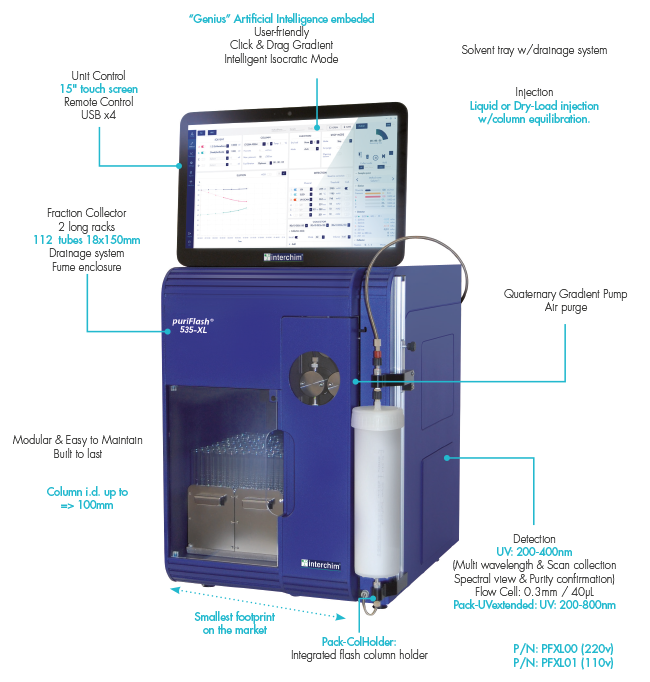

Pump |
|
Injection |
|
System Optimization
|
Flow rate: 400mL/min
Pressure max.: 35bar
Quaternary Gradient
Air purge |
|
Injection mode: liquid - Dry-load |
|
Tubings: 1/8"x1.6mm id
Flow cell-optical length: 0.3mm / 40µL |
|
|
|
|
|
Detector |
|
Fraction Collector |
|
Safety |
UV: 200 - 400nm
multi wavelength & scan collection
Spectral view & purity confirmation |
|
2 long racks
112 tubes 18x150mm |
|
Solvent tray w/drainage system
Collector w/drainage system
Fume Encloser |
|
|
|
|
|
Unit control |
|
Software |
|
|
Touch screen 15"
USB x 4
RJ45 |
|
InterSoft® X "Genius" |
|
|
