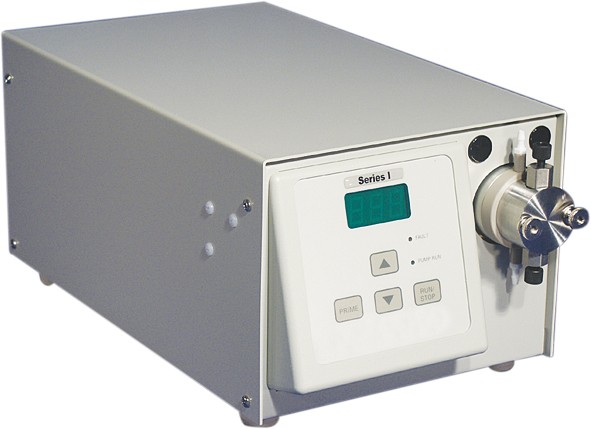

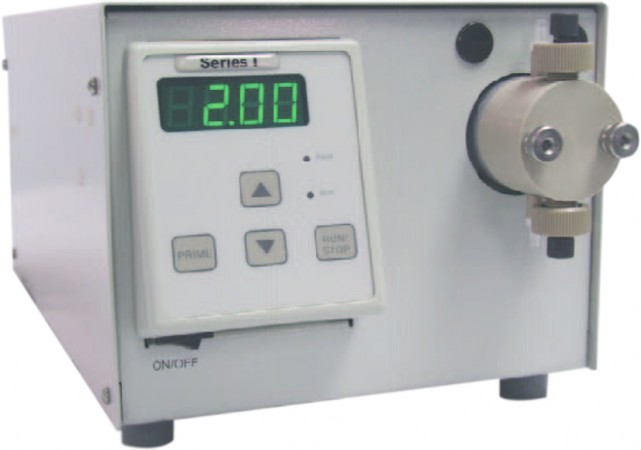

MX Class: Economic
|
|
Single piston pumps with added features for specific HPLC applications
and demanding metering & dispensing.
|
Flow Rate
|
|
Pressure
|
|
Fluid Path
|
|
Control
|
10mL/min
40mL/min |
|
Up to 5,000psi
(10mL/min) |
|
Stainless Steel, PEEK
or Titanium |
|
RS-232, Micro USB,
Voltage Flow Control,
Run/Stop |
| |
Use the following lists of options and option codes to construct your pump model number.
|
| |
Example Model Number: M X 0 1 0 S F X 1 A
|
| |
|
M X
|
- - -
|
-
|
-
|
-
|
-
|
-
|
| Pump Class |
Flow Rate |
Material |
Self-Flush |
Pulse Dampener |
Piston Seal |
Inlet/Outlet Fittings |
| M X |
0 1 0 - 10mL/min
(5,000psi max.) |
S - Stainless Steel
Fluid Path |
F - w/ Self-Flush
Piston Wash |
P - Pulse Dampener Only
No Pressure or Leak Sensors |
1 - Standard Seal
(SS Energizer) |
A - 1/4"-28 inlet - 1/16" CPI outlet
Flatbottom |
| |
0 4 0 - 40mL/min
(900psi max.) |
P - PEEK
Fluid Path |
N - No Self-Flush |
T - Pulse Dampener
w/ Pressure & Leak Sensors |
2 - Organic Seal
(SS Energizer) |
B - 1/8"-CPI inlet - 1/16" CPI outlet
(SS only) |
| |
|
T - Titanium
Fluid Path |
|
N - No Pulse Dampener
No Pressure or Leak Sensors |
3 - Standard Seal
(FP Energizer) |
C - 1/8"-CPI inlet - 1/8" CPI outlet
(SS only) |
| |
|
|
|
X - No Pulse Dampener
w/ Pressure & Leak Sensors |
4 - Organic Seal
(FP Energizer)
(SS = Stainless Steel)
(FP = Fluoropolymer) |
D - 1/4"-28 inlet - 1/4"-28 outlet
Flatbottom |

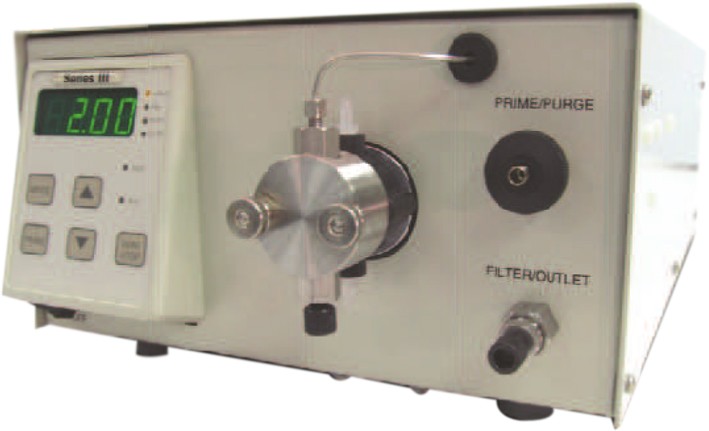

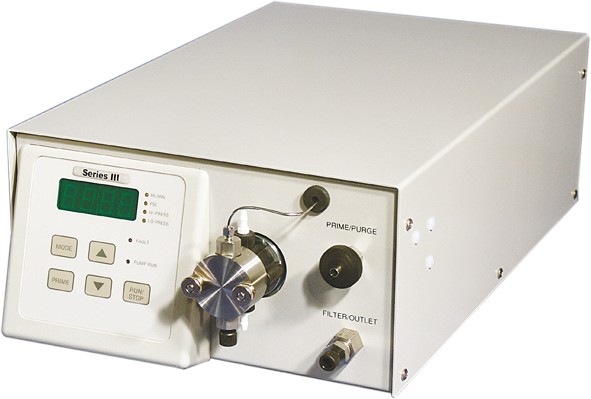

LS Class: High performance isocratic pumps
|
|
Single-headed, positive displacement piston pumps incorporating advanced
cam designs for very low pulsation.
Wide variety of HPLC applications (including Biocompatible separations),
semi-prep LC, metering & dispensing, and general laboratory use.
|
Flow Rate
|
|
Pressure
|
|
Fluid Path
|
|
Control
|
5mL/min
10mL/min
40mL/min |
|
Up to 6,000psi
(5mL/min or 10mL/min) |
|
Stainless Steel, PEEK
or Titanium |
|
RS-232, Micro USB,
Voltage Flow Control,
Run/Stop |
| |
Use the following lists of options and option codes to construct your pump model number.
|
| |
Example Model Number: L S 0 0 5 S F X 1 A
|
| |
|
L S
|
- - -
|
-
|
-
|
-
|
-
|
-
|
| Pump Class |
Flow Rate |
Material |
Self-Flush |
Pulse Dampener |
Piston Seal |
Inlet/Outlet Fittings |
| L S |
0 0 5 - 5mL/min
(6,000psi max.) |
S - Stainless Steel
Fluid Path |
F - w/ Self-Flush
Piston Wash |
P - Pulse Dampener Only
No Pressure or Leak Sensors |
1 - Standard Seal
(SS Energizer) |
A - 1/4"-28 inlet - 1/16" CPI outlet
Flatbottom |
| |
0 1 0 - 10mL/min
(6,000psi max.) |
P - PEEK
Fluid Path |
N - No Self-Flush |
T - Pulse Dampener
w/ Pressure & Leak Sensors |
2 - Organic Seal
(SS Energizer) |
B - 1/8"-CPI inlet - 1/16" CPI outlet
(SS only) |
| |
0 4 0 - 40mL/min
(1,600psi max.) |
T - Titanium
Fluid Path |
|
N - No Pulse Dampener
No Pressure or Leak Sensors |
3 - Standard Seal
(FP Energizer) |
C - 1/8"-CPI inlet - 1/8" CPI outlet
(SS only) |
| |
|
J - Jacketed SS
Pump Head |
|
X - No Pulse Dampener
w/ Pressure & Leak Sensors |
4 - Organic Seal
(FP Energizer)
(Consult Factory)
(SS = Stainless Steel)
(FP = Fluoropolymer) |
D - 1/4"-28 inlet - 1/4"-28 outlet
Flatbottom |

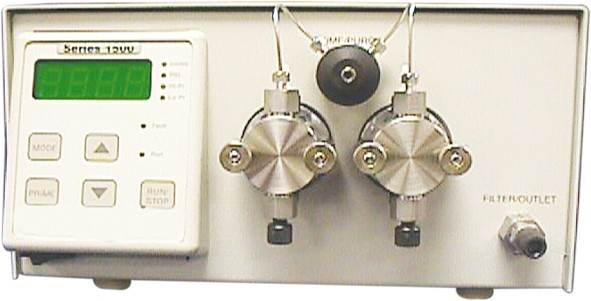

LD Class: Dual piston pumps for low pulsation requirements
|
|
Dual-headed, positive displacement piston pumps unmatched performance
for analytical, flash, andsmall-scale preparative chromatography applications.
|
Flow Rate
|
|
Pressure
|
|
Fluid Path
|
|
Control
|
12mL/min
36mL/min
100mL/min |
|
Up to 6,000psi
(12mL/min) |
|
Stainless Steel, PEEK
or Titanium |
|
RS-232, Micro USB,
Voltage Flow Control,
Run/Stop |
| |
Use the following lists of options and option codes to construct your pump model number.
|
| |
Example Model Number: L D 0 1 2 S F X 1 A
|
| |
|
L D
|
- - -
|
-
|
-
|
-
|
-
|
-
|
| Pump Class |
Flow Rate |
Material |
Self-Flush |
Pulse Dampener |
Piston Seal |
Inlet/Outlet Fittings |
| L D |
0 1 2 - 12mL/min
(6,000psi max.) |
S - Stainless Steel
Fluid Path |
F - w/ Self-Flush
Piston Wash |
P - Pulse Dampener Only
No Pressure or Leak Sensors |
1 - Standard Seal
(SS Energizer) |
A - 1/4"-28 inlet - 1/16" CPI outlet
Flatbottom |
| |
0 3 6 - 36mL/min
(6,000psi max.) |
P - PEEK
Fluid Path |
N - No Self-Flush |
T - Pulse Dampener
w/ Pressure & Leak Sensors |
2 - Organic Seal
(SS Energizer) |
B - 1/8"-CPI inlet - 1/16" CPI outlet
(SS only) |
| |
1 0 0 - 100mL/min
(1,000psi max.) |
T - Titanium
Fluid Path |
|
N - No Pulse Dampener
No Pressure or Leak Sensors |
3 - Standard Seal
(FP Energizer) |
C - 1/8"-CPI inlet - 1/8" CPI outlet
(SS only) |
| |
|
J - Jacketed SS
Pump Head |
|
X - No Pulse Dampener
w/ Pressure & Leak Sensors |
4 - Organic Seal
(FP Energizer)
(SS = Stainless Steel)
(FP = Fluoropolymer) |
D - 1/4"-28 inlet - 1/4"-28 outlet
Flatbottom |
|
|
